Description
This module supports Pulse , AM, FM , CW input sources.
Only Transmission gain no receiving gain.
Standard transmission gain 40 dB
- 5G Base Stations: Driver amplifier for massive MIMO systems operating in n77/n78 bands (3.4-3.6 GHz), covering macro cells, small cells, and indoor distributed antenna systems.
- CBRS Private Networks: Power amplification for 3.5 GHz Citizens Broadband Radio Service deployments, enabling private 5G for industrial automation, smart campuses, and IoT connectivity.
- S-Band Radar: Transmit chain amplification for air traffic control, weather monitoring, maritime surveillance, and defense radar systems requiring medium-range detection with weather penetration.
- Satellite Communications: Ground station uplink amplification for S-band mobile satellite services, including maritime and aeronautical terminals.
- Wireless Backhaul: Point-to-point microwave links and cellular repeater systems connecting infrastructure to core networks.
- Test & Measurement: Wideband signal generation and analysis equipment requiring flat gain response across the 3-4 GHz range.
- Drone/UAV Systems: Command and control link amplification for unmanned aerial vehicles operating in the 3.4-3.6 GHz band.
- Scientific/Medical: RF excitation for plasma generation, particle accelerators, and specialized medical equipment requiring stable power in the S-band.
Technical Data Sheet
| System Specifications | |
|---|---|
| Frequency Range | 3000–4000MHz |
| Operating Voltage | 24V (20W) | 28V (30W, 40W, 50W) |
| Gain (S21) | 40dB (Customizable 25–37dB) |
| Input Return Loss (S11) | -15dB |
| Flatness | ±0.5dB |
| Output Power | 43dBm | 45dBm | 46dBm | 47dBm |
| Current | 3.9A @ 28V, 47dBm(50watt one) |
| Efficiency | 45% @ 47dBm |
| Operating Temperature | -30℃ to +85℃ |

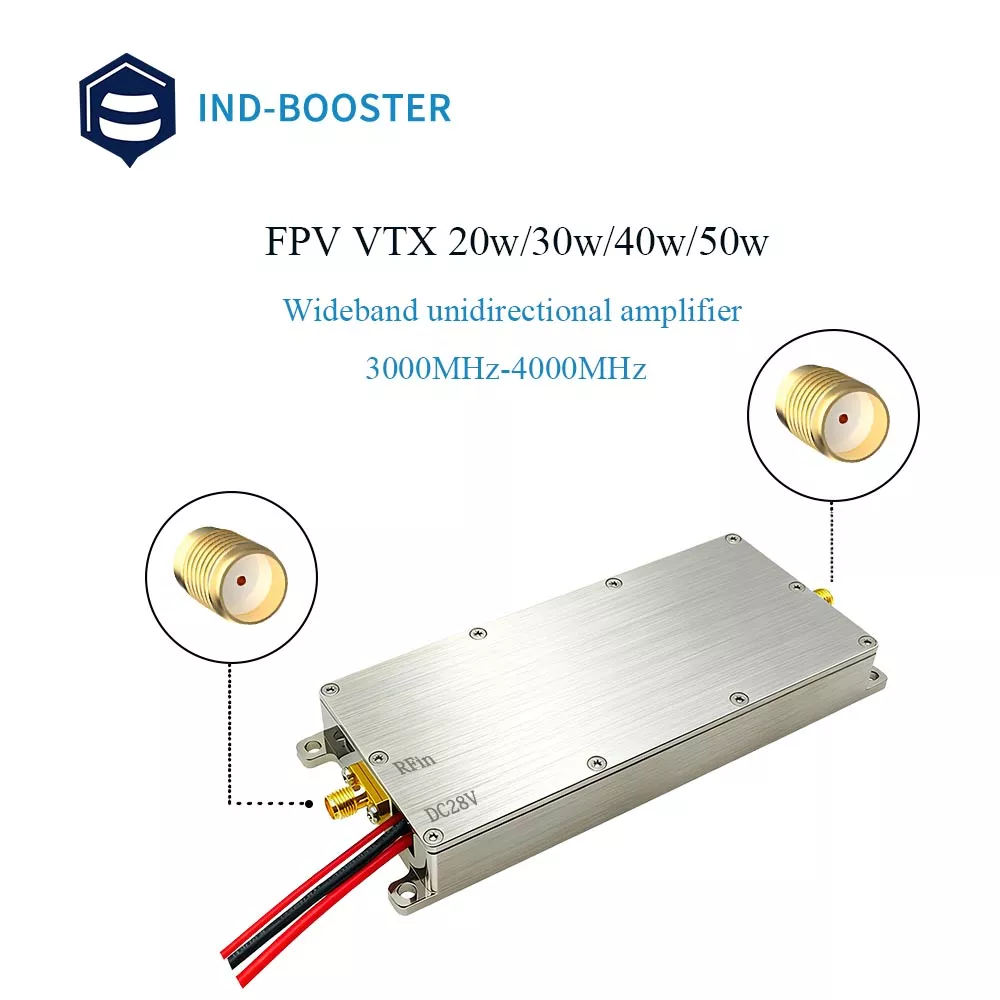

| RF Ports | Input: SMA-F | Output: SMA-F |

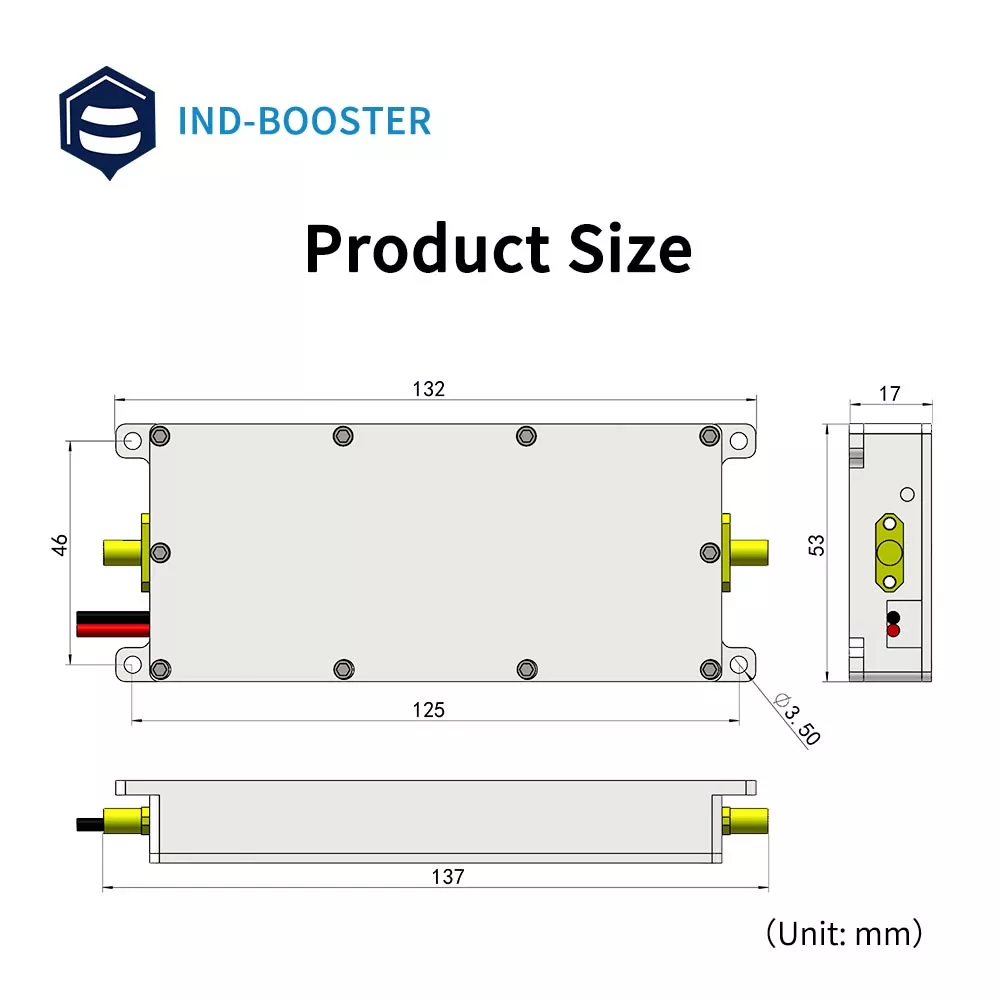

| Shell Material | Aluminum (132*53*17mm) |
| Net Weight | 0.25Kg |
Application
Satellite Communication (SATCOM) Ground Stations
Radar Systems (Civil & Defense)
Wireless Backhaul & Point-to-Point Links
- GaN amplifier
- Low noise amplifier (LNA) 3-4 GHz
- High-gain RF module 40 dB
- Unidirectional signal path
- 50Ω matched broadband amplifier

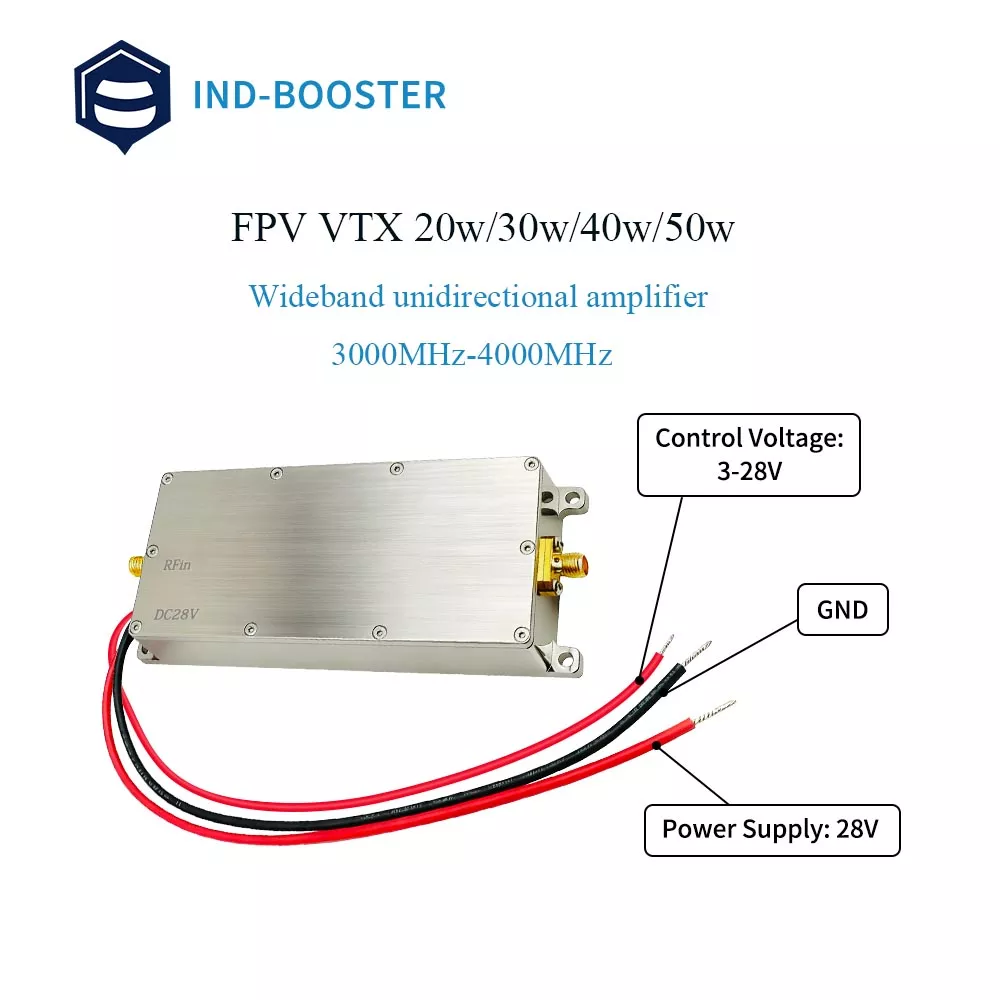

Product detailed pictures
Appendix
1 Efficient heat sinks and fans are needed when using.
2 Antenna should be connected first then power on to prevent damage.
3 It is necessary to control the input within -13dBm to 10dBm to avoid damage.
