1086-1094 MHz Narrow Bandpass Filter with 0.5dB ultra low loss.
It is a bandpass Filter with passband 1086-1094MHz
This filter has a good VSWR performance which is lower than 1.2
With 50 watt max input, this ADS-B filter has many potential applications in
Aviation communication application,ATC Receiver Front-end UseAnti-interference for RF SystemSuppress LTE.
Effectively isolate adjacent channel and cellular signal interferenceMaintain pure 1086–1094MHz passband signal for aviation navigationDesigned for ADS-B, IFF, SSR aviation surveillance and positioning systems.
High-selectivity dielectric filter with low insertion loss for 1090MHz RF front-end.

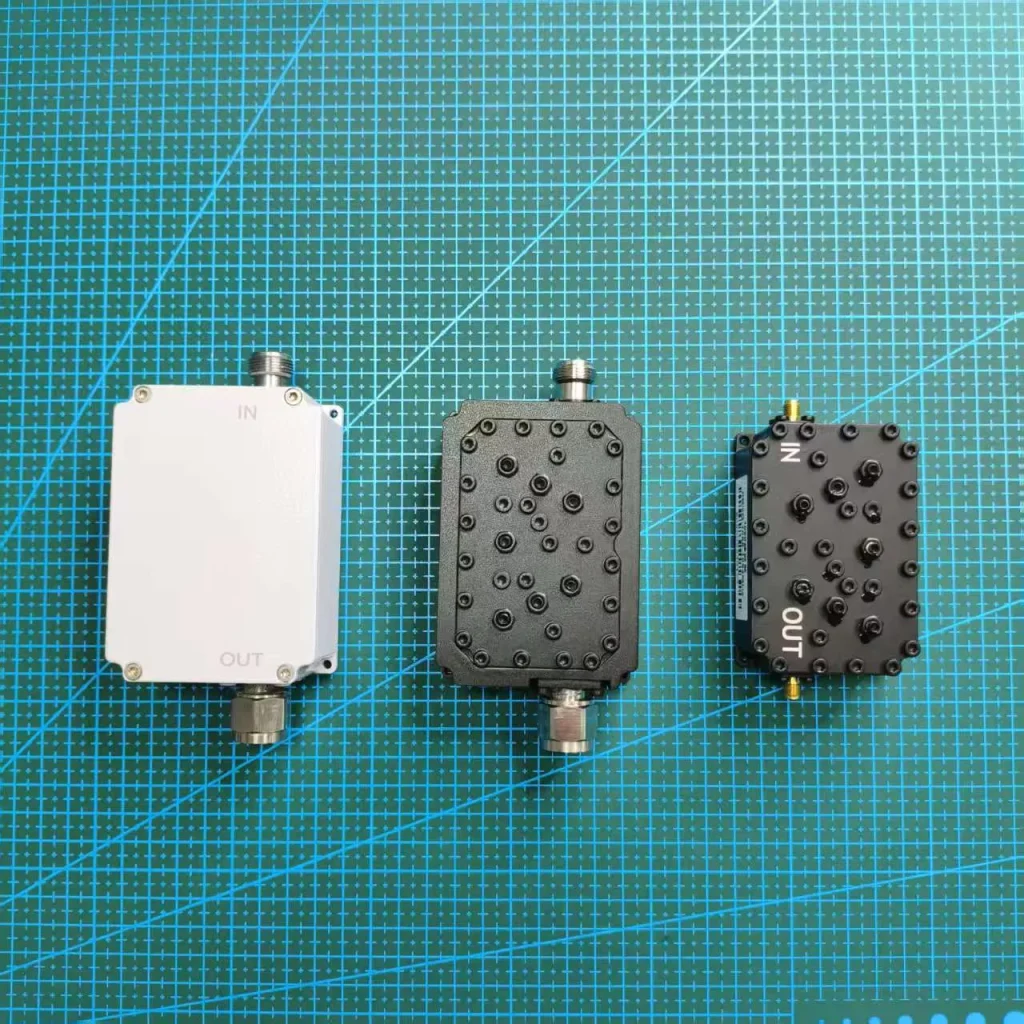

There are three types of filter avaiable( two indoor and one outdoor version)
Technical parameters

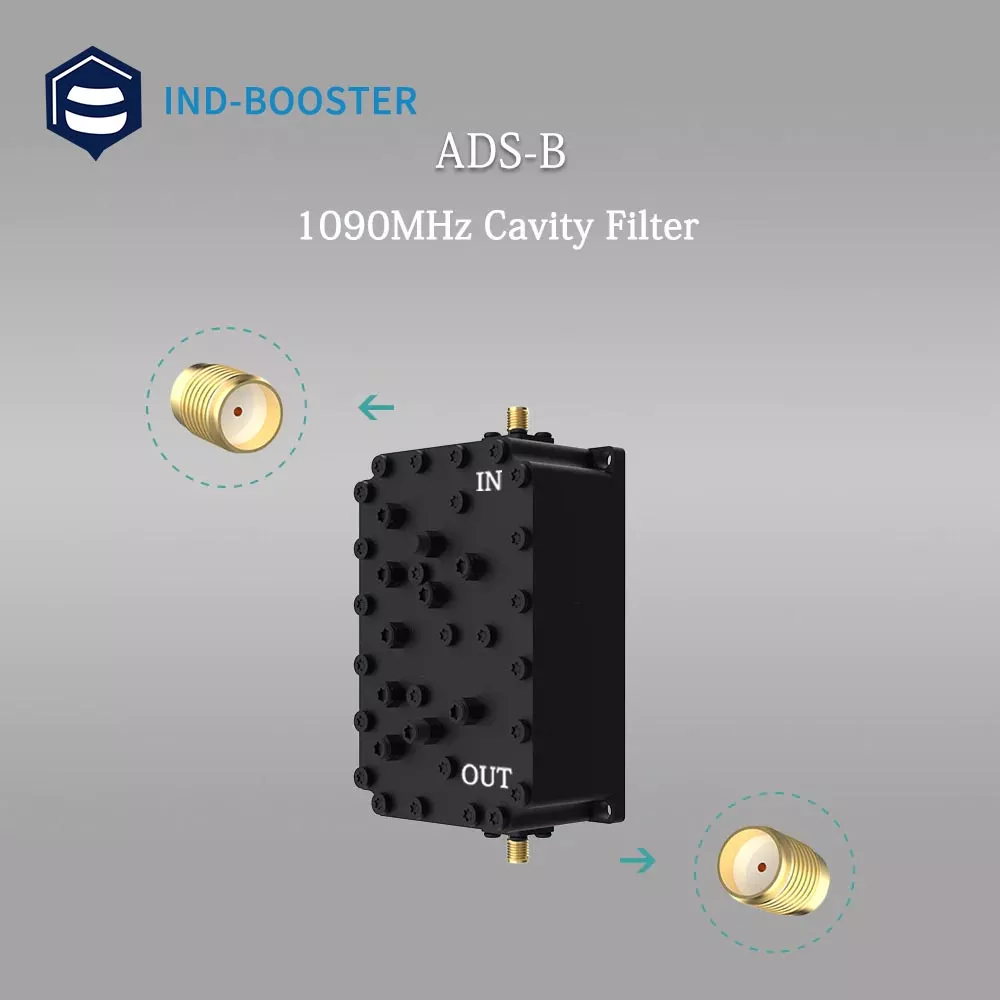

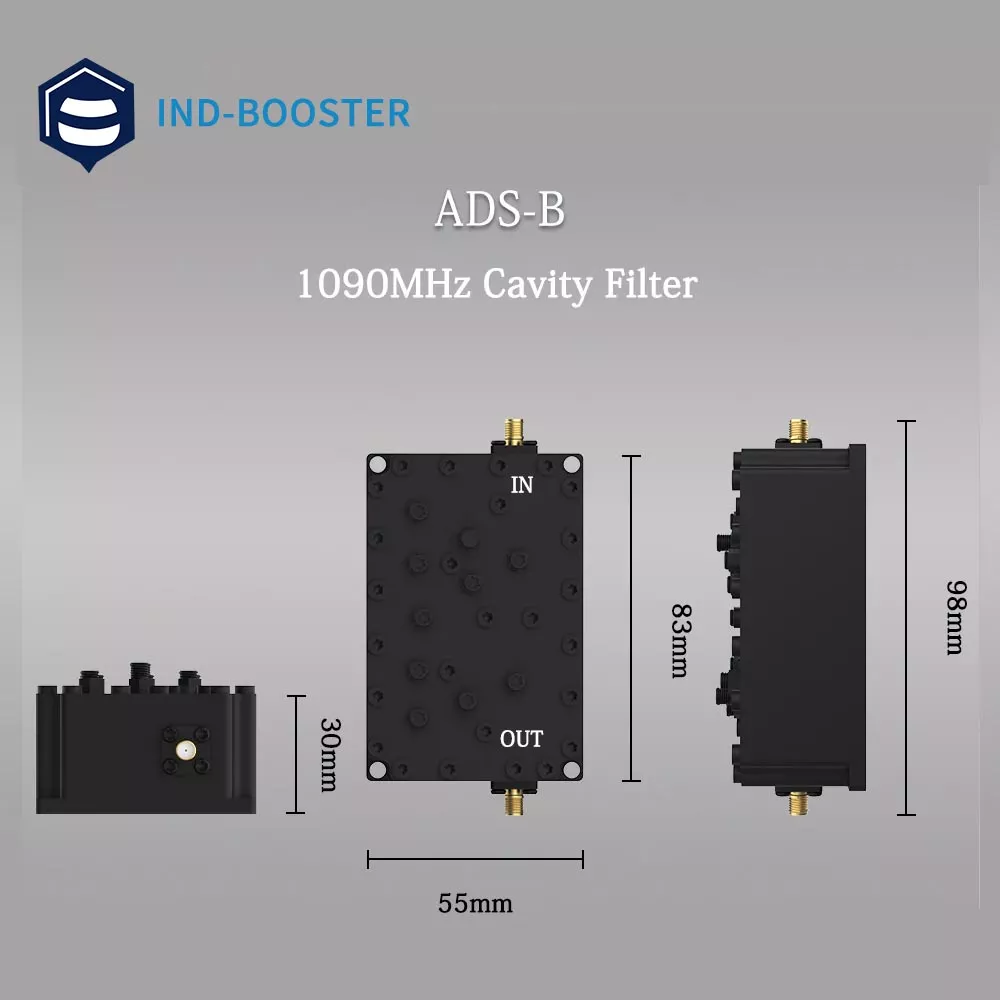

Type A: SMA(Female) to SMA(Female) type-indoor

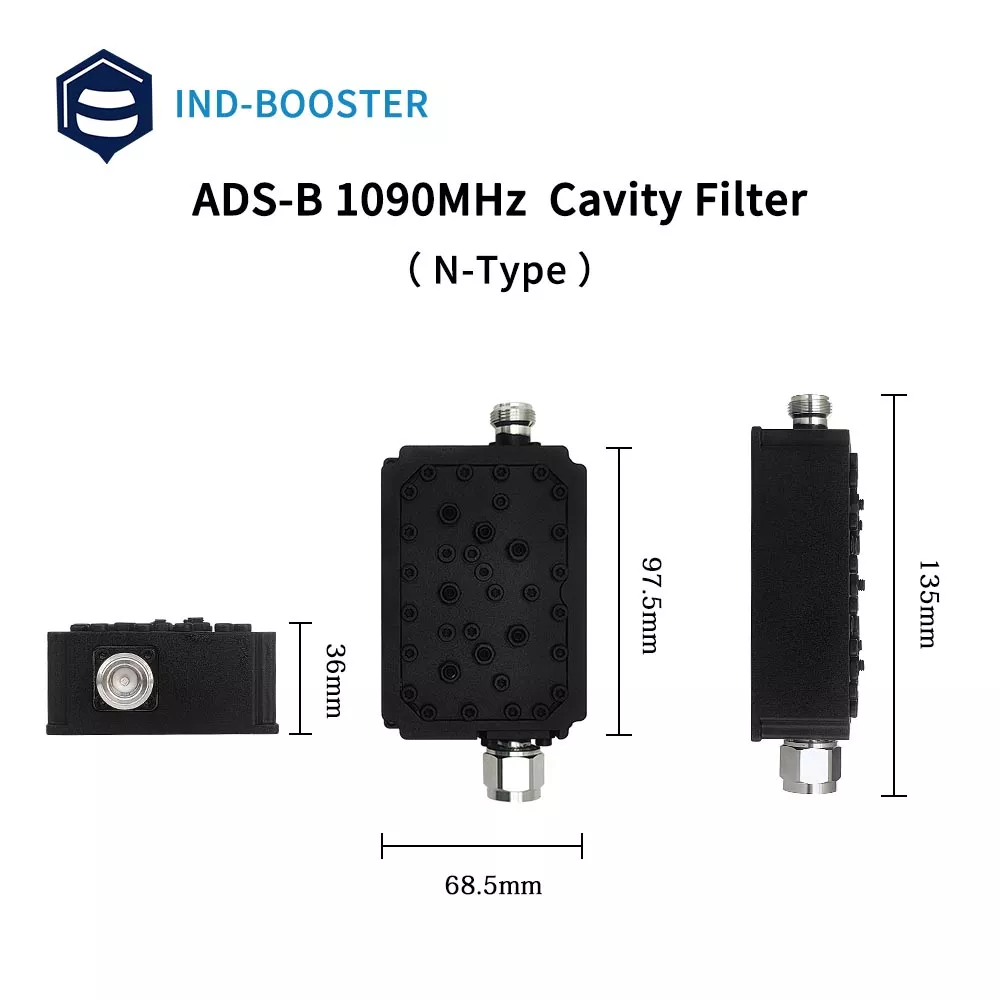

Type B: N(Male) to N(Male) type-indoor

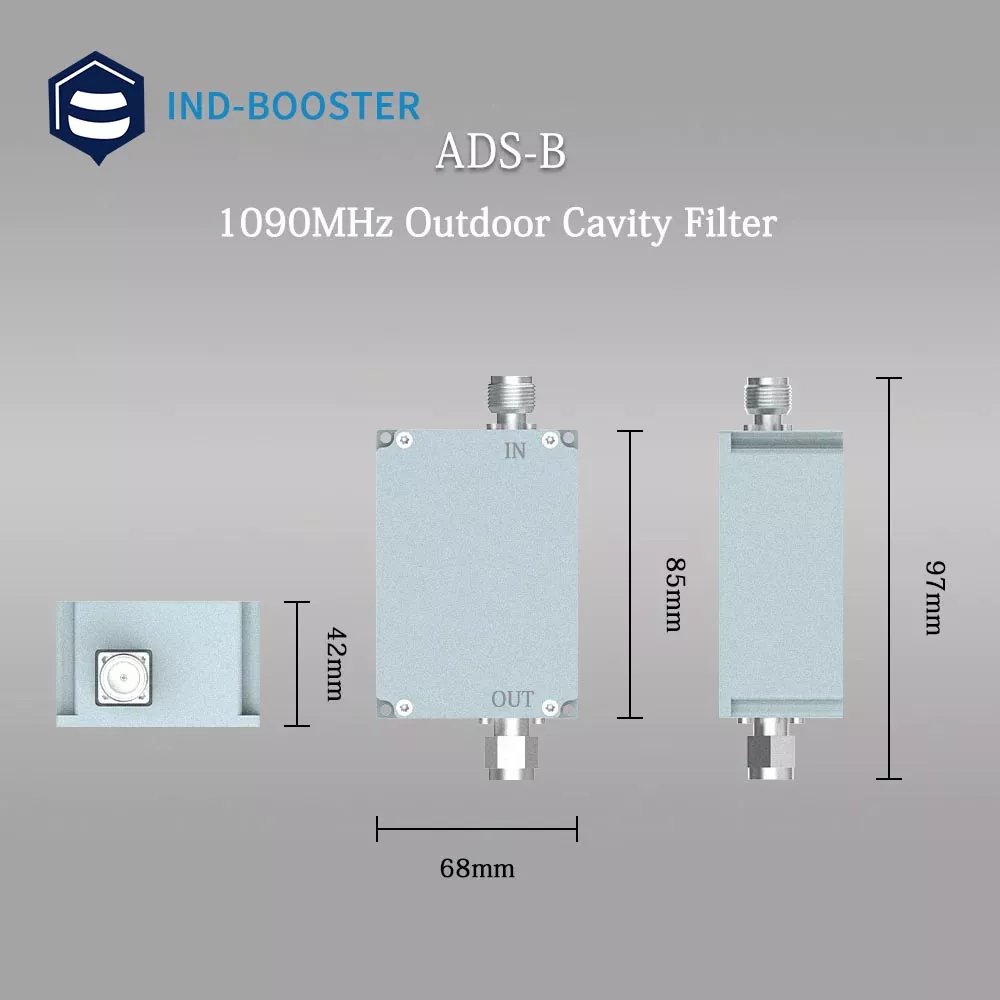

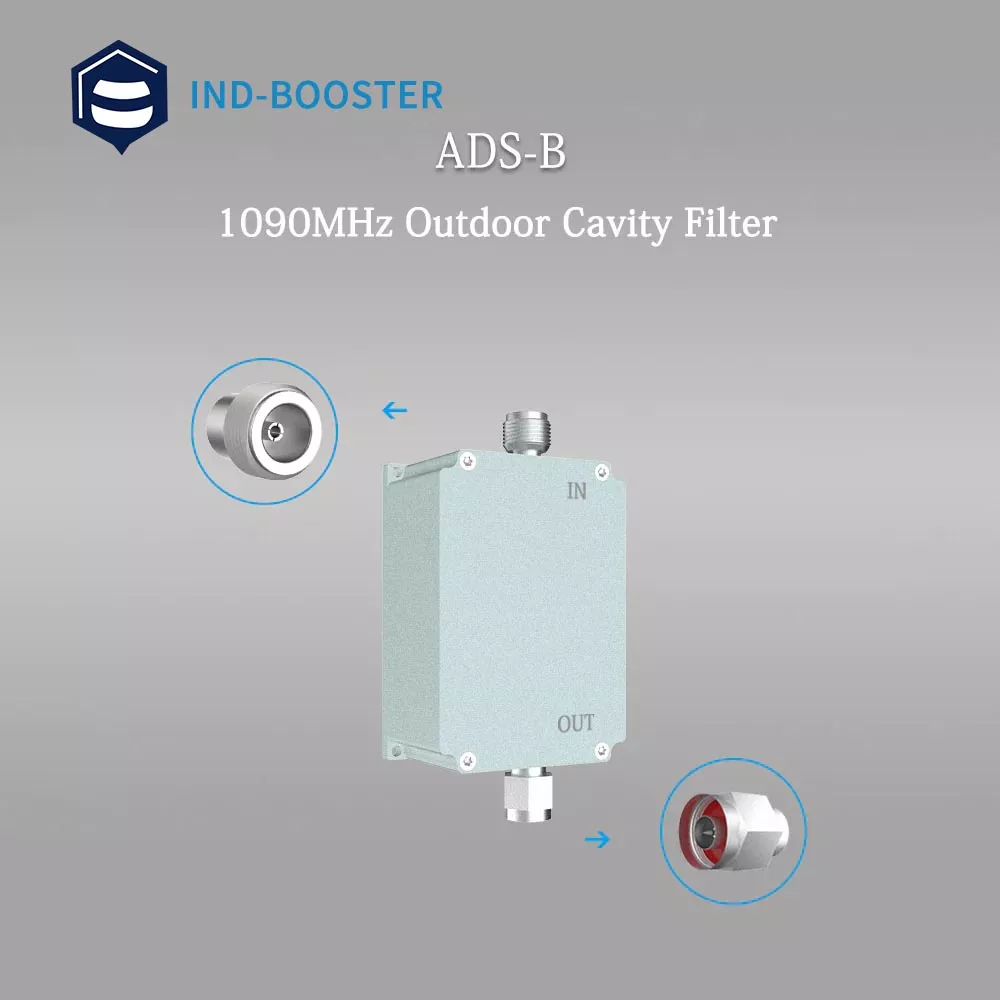

Type C: N(Male) to N(Female) type-outdoor
| Item | Specification |
|---|---|
| Frequency Range | 1086-1094 MHz |
| Insertion Loss | ≤ 0.5dB |
| Out of Band Rejection | ＞75dB(100-1060MHz&1120-2700MHz) |
| VSWR | < 1.2 |
| Power Rating | 50W |
Product picture
Keywords
1090MHz Filter; Cavity Filter, ADS-B
FAQ
1 Is it possible to do some customized products?
Yes, Indbooster is willing to do research for your target and try our best.
2 Could i get product testing picture?
Indbooster does testing for each product before sending out. If you need a testing picture please leave a message.
3 If i want to book with more quantity, will there be some discount?
Yes, if your order quantity reaches certain amout, Indbooster provides bulk disount.
